QSR / QSR-Air series
QSR-Air 75"

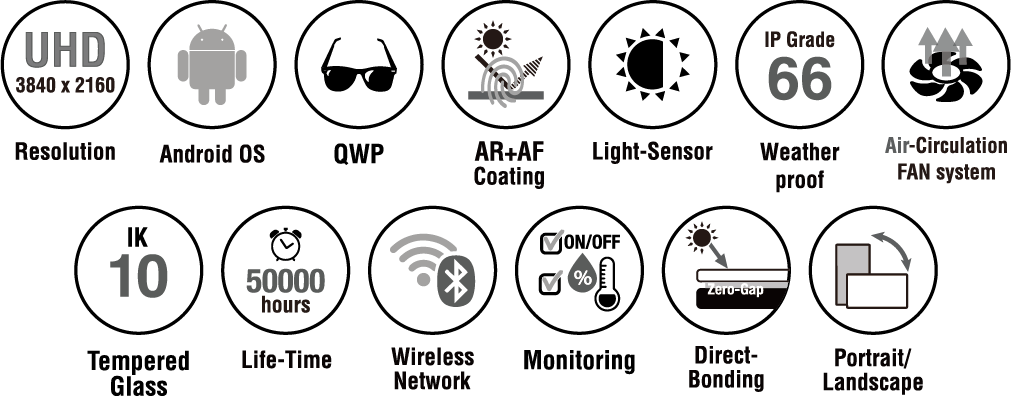

DESIGN
QSR-Air 75"
SPECIFICATIONS
Screen Size
75inch (1892.73mm) diagonal
Panel Type
LGD IPS Panel, RGBW
Resolution
3840 x 2160(UHD)
Viewing Angles
R/L 178º , U/D 178º
Brightness(cd/m²)
3000nit(Center 1 point,Typ.)
Panel Interface
V-by-One
Color Gamut
NTSC 68%
Back light
Direct LED
Glass
Thickness
4T,Hard Coating(6H)
Surface Treatment
AR+AF,Light transmittance ≥ 94%
Chipset
MSD3683
Resolution
3840 x 2160
Component(Mini.)
480i,480p,720p,1080i,1080p
HDMI 1,2
480i,480p,720p,1080i,1080p,2160p
HDMI Ver.:1.4/2.0
HDCP Ver.:1.4/2.2
CEC: HDMI 1,2
ARC: HDMI 2
Display Port
480i,480p,720p,1080i,1080p,2160p
EXT. ALS
Ambient Light Sensor 3.5mm jack
CVBS(Mini.)
480i,576i
USB
Software Upgarde, Multimedia play
SPDIF
Optical
Audio Out(L/R)
Earphone
RS232
3.5mm Earphone jack
IR
3.5mm Earphone jack
LAN
RJ45(Ethernet)
IDC Output
5V DC 2.4A USB A(Female)
12V DC 2.5A Jack(5.5mm)
OS
Android 9.0
RAM
2GBytes(DDR4)
ROM
16GBytes(eMMC)
Bluetooth 4.1
Wi-Fi
802.11 b/g/n/ac(Dual Band 2.4G /5G)
I/O Port
RJ45 Ethernet Port
Power Consumption
620W (Typ.)/ Stan-by : <3W
Power Supply(SMPS)
AC 100~240V /50~60Hz
Weatherproof Rate
IP 66
Landscape/Portrait
Yes
Operating Temperature
-30º C~50º C
(With FAN)
Set(W x H x D)
1002.0 x 1723.6 x 136.1mm
Carton(W x H x D)
1870.0 x 1125.0 x 301.0mm
Set(Kg)
86.0Kg
Package(Kg)
102.2Kg
