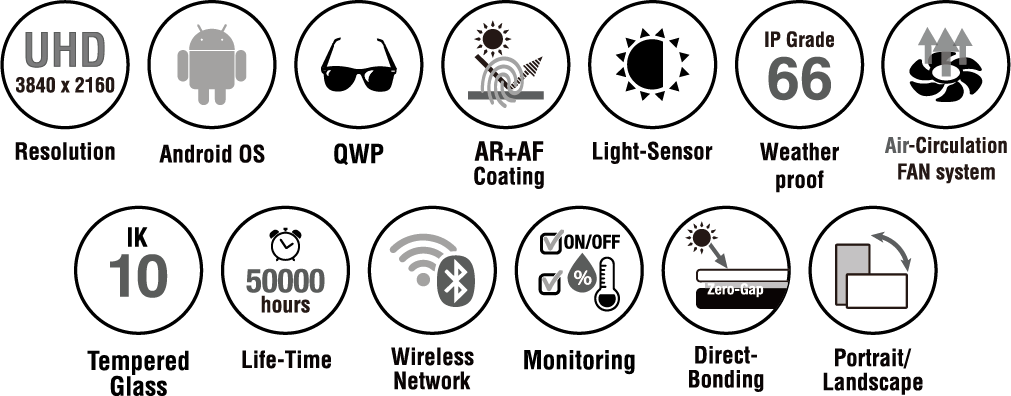

Features
320TXF2R-GW
Technical Specifications
QSR series
QSR-Air 86"
SPECIFICATIONS
Screen Size
86inch (2147.6mm) diagonal
Panel Type
LGD IPS Panel, RGB
Resolution
3840 x 2160(UHD)
Viewing Angles
R/L 178º , U/D 178º
Brightness(cd/m²)
5000nit(Center 1 point,Typ.)
Panel Interface
V-by-One
Color Gamut
NTSC 68%
Back light
Direct LED
Glass
Thickness
4T,Hard Coating(6H)
Surface Treatment
AR+AF,Light transmittance ≥ 94%
Chipset
MSD3683
3840 x 2160
Component(Mini.)
480i,480p,720p,1080i,1080p
HDMI 1,2
480i,480p,720p,1080i,1080p,2160p
HDMI Ver.:1.4/2.0
HDCP Ver.:1.4/2.2
CEC: HDMI 1,2
ARC: HDMI 2
Display Port
EXT. ALS
Ambient Light Sensor 3.5mm jack
CVBS(Mini.)
480i,576i
USB
Software Upgarde, Multimedia play
SPDIF
Optical
Audio Out(L/R)
Earphone
RS232
3.5mm Earphone jack
IR
LAN
RJ45(Ethernet)
DC Output
5V DC 2.4A USB A(Female)
12V DC 2.5A Jack(5.5mm)
OS
Android 9.0
RAM
2GBytes(DDR4)
ROM
16GBytes(eMMC)
Bluetooth 4.1
Wi-Fi
802.11 b/g/n/ac(Dual Band 2.4G /5G)
I/O Port
RJ45 Ethernet Port
Power Consumption
1650W (Typ.)/ Stan-by : <3W
Power Supply(SMPS)
AC 100~240V /50~60Hz
Weatherproof Rate
IP 66
Landscape/Portrait
Yes
Operating Temperature
-30º C~50º C
(With FAN)
Set(W x H x D)
1174.7 x 1982.4 x 144.1mm
Carton(W x H x D)
2200.0 x 1555.0 x 500.0mm
Set(Kg)
149.4Kg
Package(Kg)
190.0Kg
