QSR series
QSR 27" Touch

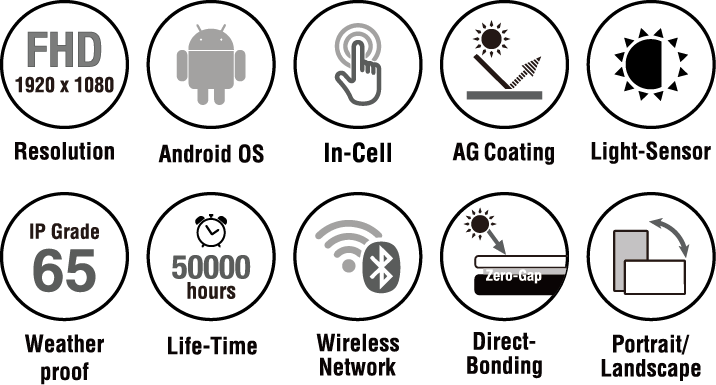

SPECIFICATIONS
Screen Size
27inch (685.8mm) diagonal
Panel Type
BOE Panel,RGB
Resolution
1920x1080(FHD)
Viewing Angles
R/L 178º , U/D 178º
Brightness(cd/m²)
1500nit(Center 1 point,Typ.)
Panel Interface
LVDS 2ch
Color Gamut
NTSC 72%
Back light
Edge LED
Thickness
3T.Hard Coating(7H)
Surface Treatment
AG, Light transmittance ≥89%
Chipset
Hi3751 V560
1920 x 1080
Video input
HDMI IN,USB x2
Audio Out(L/R)
Earphone
Touch Type
In-Cell
Active Touch Area
Same as LCD active area
Multi Touch Point
10 Points
OS
Android 9.0
RAM
2GBytes(DDR4)
ROM
8GBytes(eMMC)
Ethernet
LAN(RJ45 port)
Wi-Fi / Bluetooth
802.11 a/b/g/n(2.4G & 5G)/ BT4.1
Power Consumption
90W (Typ.)/ Stan-by : <1.0W
Power Supply(SMPS)
AC 100~240V /50~60Hz
Weatherproof Rate
IP 65
Landscape/Portrait
Yes
Operating Temperature
-20º C~40º C
Set(W x H x D)
394.2 x 655.8 x 57.18mm
Carton(W x H x D)
780.8 x 512.7 x 185.1mm
Set(Kg)
11.0Kg
Package(Kg)
13.75Kg
Download
320TXF2R-GW
NEWOPTICS_QSR_air_32_320TXF2R-GW.PDF
QSR_32_320TXF2R-GW_drawing.PDF
